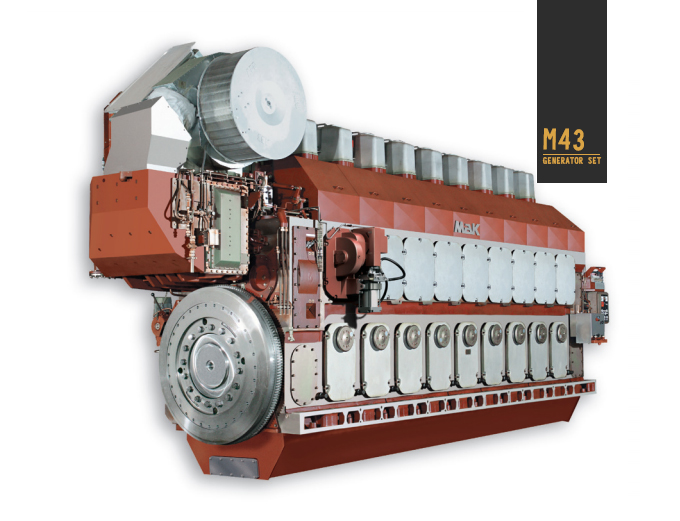

M43 generator set M43 发电机组

M43C为四冲程柴油机，不可逆转，废气涡轮增压，中冷，直接燃油喷射。
The M 43 C is a four-stroke diesel engine, non-reversible, turbocharged and intercooled with direct fuel injection.



__
Quick Facts 主要参数


__

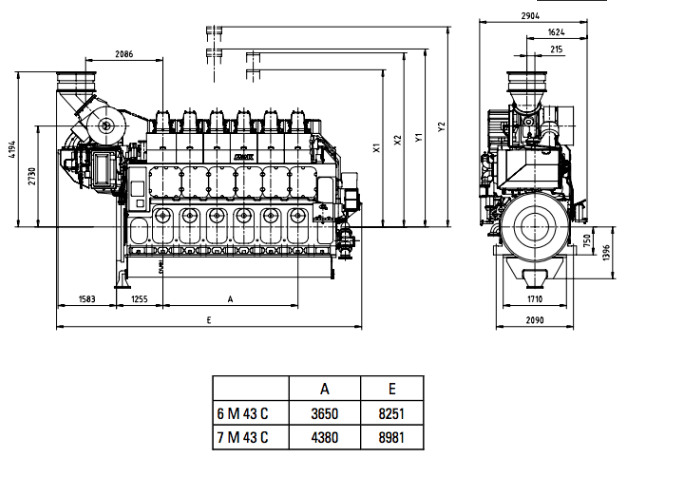

Dimensions and weight 尺寸和重量

__
Specs技术规范

Piston
活塞

in transverse direction X1 = 3530 mm
横向尺寸 X1 = 3530 mm

in longitudinal direction X2 = 3975 mm
纵向尺寸X2 = 3975 mm

Cylinder Liner
汽缸套

in transverse direction Y1 = 4165 mm
横向尺寸 Y1 = 4165 mm

in longitudinal direction Y2 = 4610 mm
纵向尺寸Y2 = 4610 mm

in transverse dir. reduced Y1 red = 3705 mm
横向方向，减少y1红色=3705 mm

Engine centre distance 3400 mm
柴油机中心距离3400 mm

(2 engines side by side)
2台发动机并排放置
